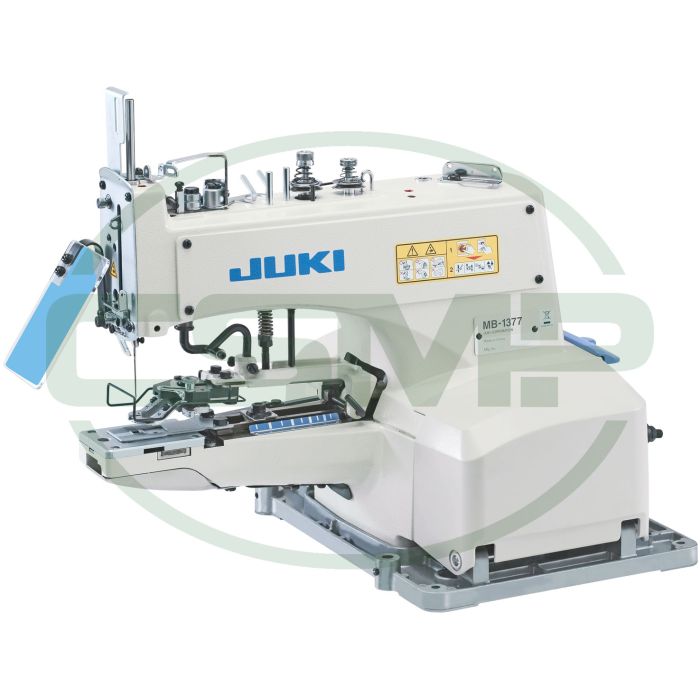

Juki MB-1377

Name: JUKI MB-1377 CHAINSTITCH BUTTON SEWING MACHINE HEAD ONLY
Brand: Juki
SKU: JUKIMB1377

Single-thread, Chainstitch, Button Sewing Machine (Stitching Shape Lever Change-Over Type)

The sophisticated-form machine with excellent operability and productivity.

The single-thread, chainstitch, button sewing machine, which is frequently used for sewing buttons on men's wear and blouses under different sewing conditions, has been redesigned with its capabilities upgraded.

Stitch shape can quickly be changed over between and button-hole configurations (only for MB-1377)

Stitch shape can easily be changed over between and button-hole configurations only by operating the lever.

In addition, this single machine is able to sew two different kinds of buttons to save space and increase availability. (MB-1377)

Thread-fray-prevention ON/OFF changeover mechanism

The machine is provided as standard with a "thread-fray-prevention ON/OFF changeover mechanism” to help produce beautiful seams with added durability.

Speedy sewing

The machine sews buttons with an optimum number of stitches; 8, 16 or 32, according to the sewing conditions.

Attachments

The attachments used for your conventional machines are applicable as they are.

Technical Specification

Model name	Juki MB-1377
Max. sewing speed	1,500sti/min*
Number of stitches	8, 16 and 32 stitches
Needle (at the time of delivery)	TQ×1(#16)#14~20
Feed length (crosswise feed)	2.5~6.5mm
Feed length (lengthwise feed)	0~4.5mm
Stitching shape
Thread-fray-prevention ON / OFF changeover mechanism	Provided as standard
Stitching shape changeover type	Lever change-over type
Applicable button	Round-shaped flat button (2-holed, 4-holed)
Applicable button	Shank button, Wrapped-around button, Snap, Label, Metal button, Stay button (exclusive attachments have to be used)
Button size	φ10~28mm
Thickness of button	1.8~3.5mm (options max. 5mm)
Needle bar stroke	48.6mm
Lift of the presser foot	9mm
Sewing system	Single thread chainstitch
Lubrication	By an oiler
Lubricating oil	JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Machine head weight	24kg
Power requirement / Motor used	Single- or 3-phase / 200W (1/4HP), General-purpose motor

*"sti/min" stands for "Stitches per Minute."

Part No

JUKIMB1377

Weight (KG)

31.000000

Manufacturer

Juki

JUKI MB-1377 CHAINSTITCH BUTTON SEWING MACHINE HEAD ONLY

Description / JUKI MB-1377 CHAINSTITCH BUTTON SEWING MACHINE HEAD ONLY

Juki MB-1377

Single-thread, Chainstitch, Button Sewing Machine (Stitching Shape Lever Change-Over Type)

Stitch shape can quickly be changed over between and button-hole configurations (only for MB-1377)
