JUKI ML-111U SINGLE THREAD CHAINSTITCH BASTING MACHINE HEAD ONLY
Part No
JUKIML111U

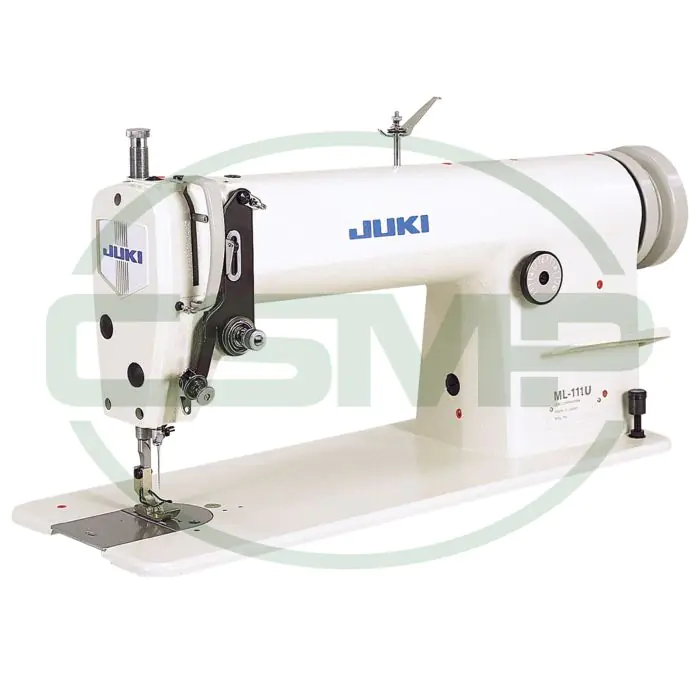

Juki ML-111U
Single-thread, Chainstitch Basting Machine
Pricing and Availability on Request
Description / JUKI ML-111U SINGLE THREAD CHAINSTITCH BASTING MACHINE HEAD ONLY
Juki ML-111U
Single-thread, Chainstitch Basting Machine
Basting machine realizes high quality
Basting machine realizes high quality
High efficient basting works at a sewing speed of 1,800sti/min.
Chainstitch is continuously formed with a single thread and by a blind looper which eliminates the need for a bobbin thread refilling. In addition, the basted seam can be easily undone.
Basting works are efficiently done with a maximum stitch length of 10mm which is easily set up by a control dial.
APPLICATIONS
The basting of the front edges, edge and stand of collars, flaps of men's and ladies' suits and coats.
The basting of the waist bands, the flies of trousers slacks, etc.
Technical Specification
| Model name | Juki ML-111U |
|---|---|
| Max. sewing speed | 1,800sti/min* |
| Max. stitch length | 10mm |
| Needle bar stroke | 35mm |
| Lift of the presser foot | By hand : 5.5mm By knee : 12mm |
| Needle (at the time of delivery) | TV×7 (#14) #11~#14 |
| Thread take-up | Needle bar thread take up |
| Feed dog | 3-row feed dog |
| Looper | Blind looper |
| Lubrication | By an oiler |
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
| Weight of the machine | 29kg |
*"sti/min" stands for "Stitches per Minute."
More Information
| Part No | JUKIML111U |
|---|---|
| Weight (KG) | 0.100000 |
| Manufacturer | Juki |
