JUKI LK-1903S-SS-301 BUTTON SEWING MACHINE SMALL BUTTOM SIMPLE SERIES
Description / JUKI LK-1903S-SS-301 BUTTON SEWING MACHINE SMALL BUTTOM SIMPLE SERIES
Juki LK-1903S-SS-301
Computer-controlled, High-speed, Lockstitch, Button Sewing Machine (For Extra-Small / Small Buttons)
JUKI Simple Series sewing machine LK-1903S has been designed to have simplified and narrowed down capabilities that are essentially required to produce JUKI's established seam quality. In addition, it supports the operator with the voice guidance system to improve work efficiency.
Voice guidance for the operator
This sewing machine is provided as standard with the voice-guidance system with clock function. This voice guidance can be used for the purpose of production support such as giving the operator information about the number of pieces produced, work progress management and the operation rate of sewing machine, though the initial setting is required.
The operation panel is provided as standard with a USB port. This means that the sewing machine data management and software updating can be carried out with ease by means of the USB port.
Higher productivity
The machine's starting, stopping, thread-trimming, up and down of button clamp jaw lever and the jump speeds have reducing to total cycle time.
This sewing machine quickly carries out sewing of various kinds of sewing patterns
The machine is provided as standard with 50 different sewing patterns. The machine permits easy changeover of sewing patterns for effortless execution of an inexhaustible range of sewing specifications.
The LK-1903S is also able to sew buttons using the same data used for the LK-1903 (Data in EP-ROM are enabled by conversion).
Auto-lifter mechanism utilizing a system
The machine is provided as standard with auto-lifter that uses a stepping-motor system. This helps reduce operator fatigue.
The work clamp foot lift can be set to a maximum of 13mm.
LED light (light quantity in five levels + light-out function)
The LED light that illuminates the needle entry area is provided as standard. The LED light is provided with the six-step changeover switch to control its brightness and light-out.
Excellent responsiveness promises comfortable work

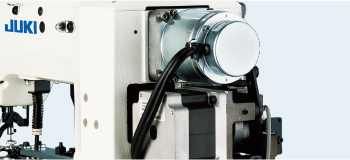

The direct-drive system that directly connects the compact AC servomotor to the main shaft of the sewing machine has been adopted.
This system enables quick startup and promises increased stopping accuracy, thereby contributing to improved responsiveness.
TABLE OF THE SEWING PATTERNS
Technical Specification
| Model name | Juki LK-1903S-SS-301 |
|---|---|
| Application | Standard |
| Max. sewing speed | 2,700sti/min* |
| Button size | Type : Round-shaped, flat button (2-holed, 4-holed) Size : φ8~φ32mm 301 : φ8~φ20 302 : φ10~φ20 OPTION : φ15~φ32 |
| Lubrication | Semi-dry head (Hook: minute-quantity lubrication) |
| Stitch length | 0.1~10mm (0.1mm step) |
| Needle bar stroke | 45.7mm |
| Lift of the work clamp foot | Max.13mm |
| Auto-lifter | Provided as standard (stepping motor type) |
| Needle thread tension | Spring type dial thread tension controller |
| Needle (at the time of delivery) | DP×17 (#14) |
| Hook | Standard shuttle hook |
| Number of stitches that can be stored in memory | Max. 20,000 stitches |
| Number of standard patterns | 50 patterns |
| Number of data that can be input | 200 patterns |
| Enlarging/Reducing facility | 20~200% (1% step), Pattern enlargement/reduction can be done by increasing/decreasing the stitch length |
| Memory medium | Internal-organs memory |
| Bobbin thread counter | Provided as standard (up/down method) |
| Lubricating oil | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) |
| Sewing machine motor | Compact AC servomotor (direct-drive system) |
| Power supply/Power consumption | Single-phase 200~240V/250VA |
| Weight | Machine head (include motor) 42kg, Control box 5.1kg |
*"sti/min" stands for "Stitches per Minute."
