JUKI DMN-5420N-7 NEEDLE FEED LOCKSTITCH WITH VERTICAL EDGE TRIMMER & UBT
Description / JUKI DMN-5420N-7 NEEDLE FEED LOCKSTITCH WITH VERTICAL EDGE TRIMMER & UBT

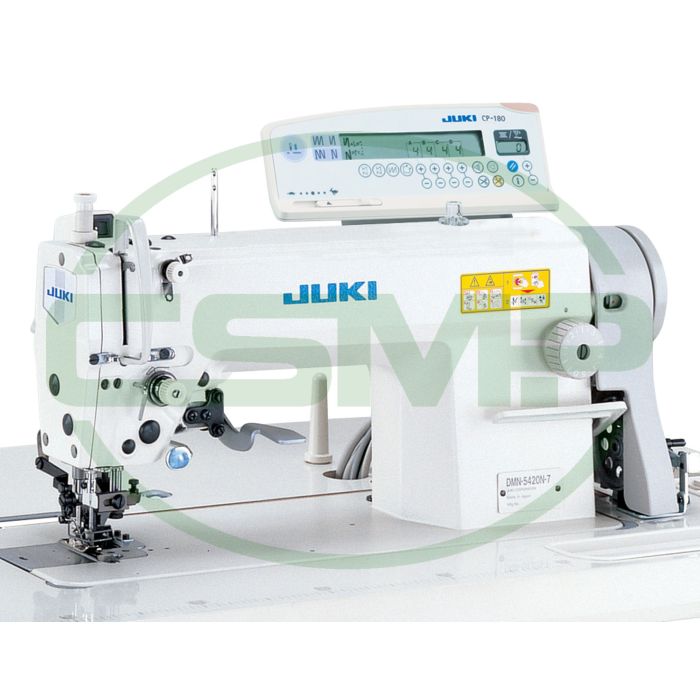

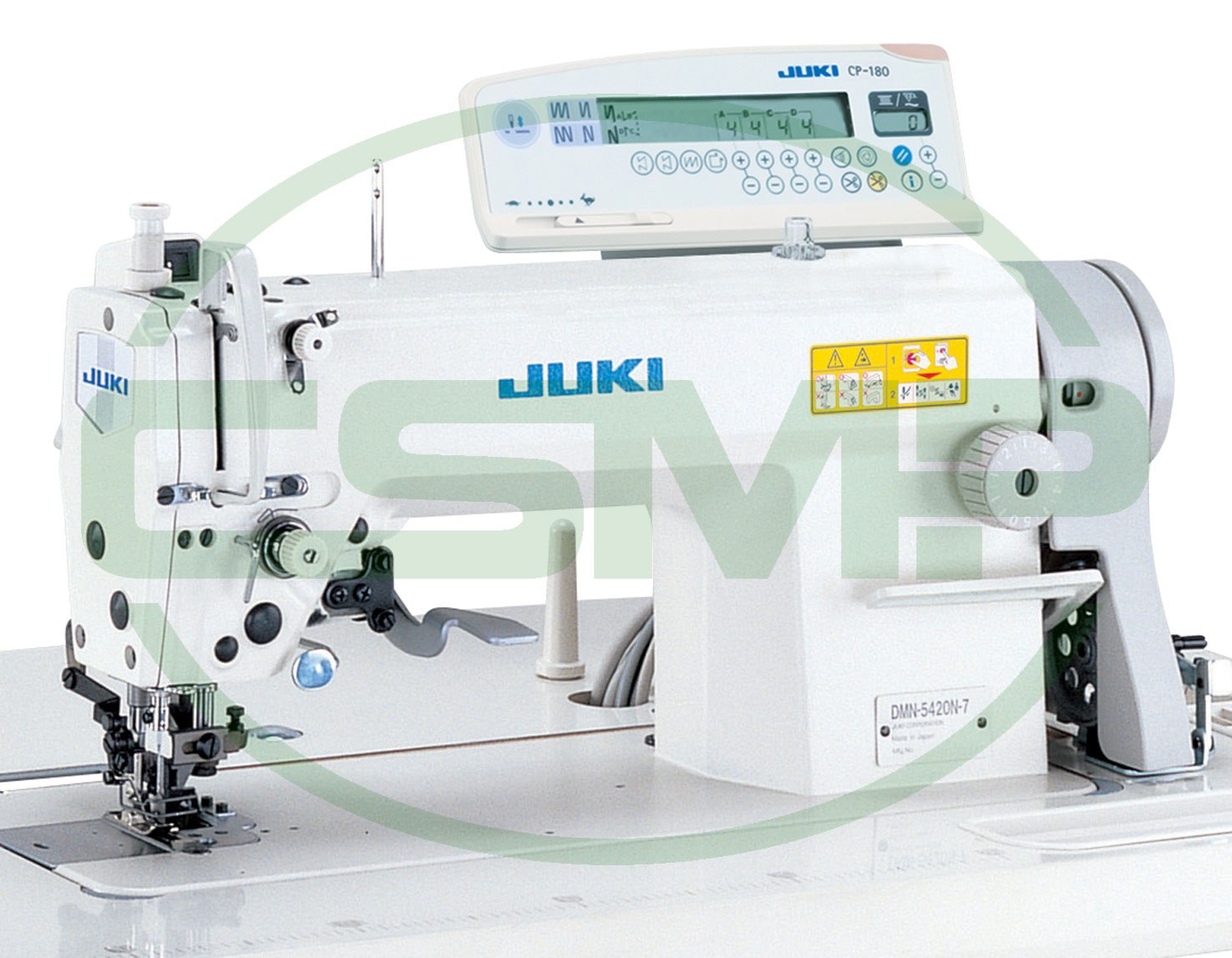

Juki DMN-5420N-7
1-needle, Needle-feed, Lockstitch Machine with Vertical Edge Trimmer and Automatic Thread Trimmer
With its highly operable knife mechanism, the machine helps promote the production of upgraded-quality products while increasing efficiency.
The stitch quality is consistent even during high-speed operation
Capable of high-speed sewing, it can also flexibly respond to various applications, thus leading to higher productivity.
The knife is sharp enough to cut any type of material
The knife is capable of cutting any kind of material regardless of its thickness or toughness, including heavy-weight material, elastic material and brushing material.
The one-touch utility knife lever enhances the comfort of operation
Since the knife lever has been plasted so as to prevent rust, there is no need to worry about the material becoming soiled with rust.
Sure thread trimming mechanism
The thread trimmer is designed to cut various threads of different thicknesses, so the range of the applicable thread thickness number has been widened. The thread trimmer can therefore cut even a thick thread with ease.
Adjustment of the position of the cloth trimming knife
The cloth trimming knife has been designed so that it can move as much as 5.5mm toward you from the center of the needle.
The operation panel can be selected according to the process (CP-18A, CP-180A)

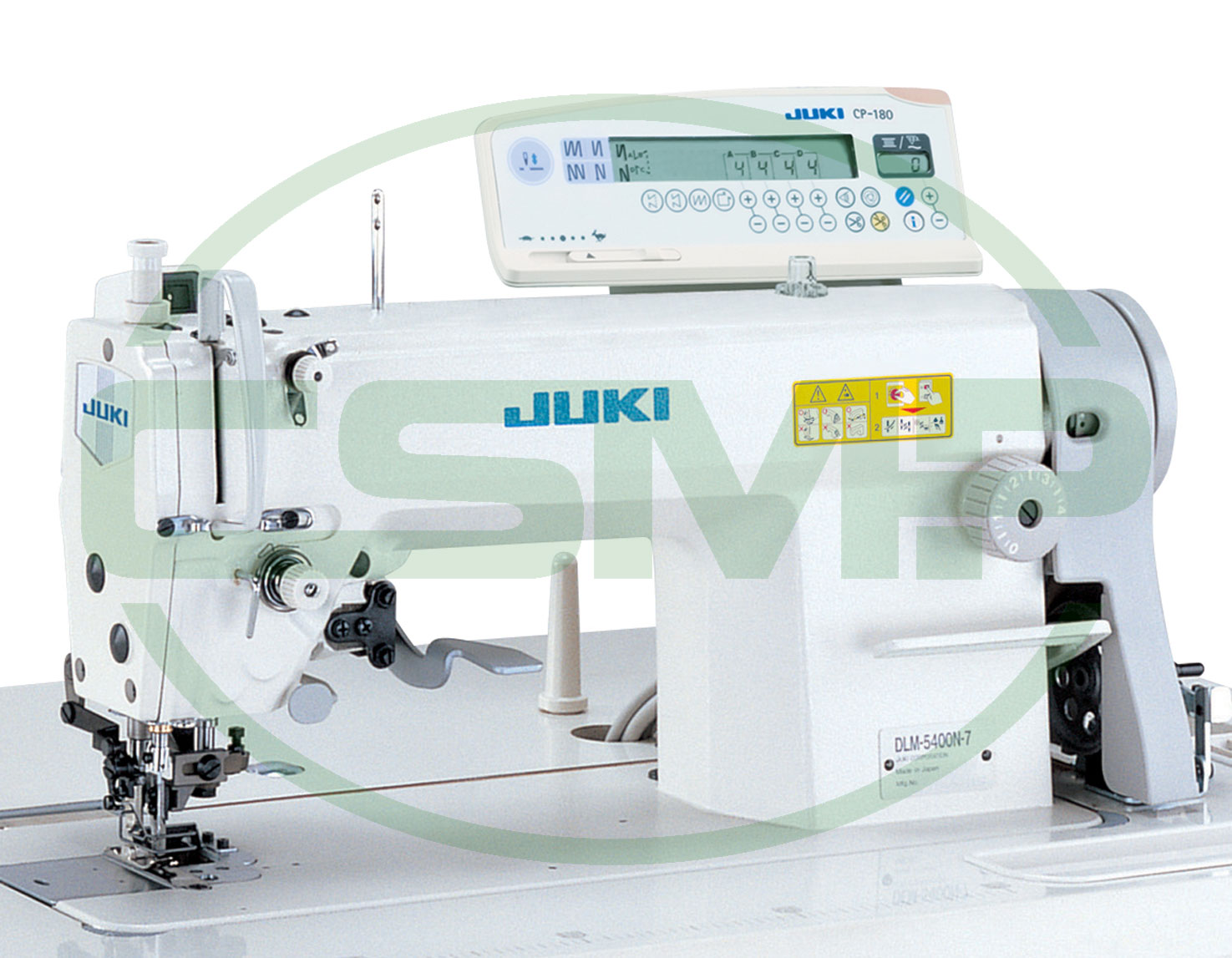

Two different operation panels, the CP-18A and CP-180A are applicable to the DLM- 5400N-7 and DMN-5420N-7. Both operation panels are provided with the production support function.
The production support function actually consists of three different functions (six different modes)
Technical Specifications
| Model | Juki DMN-5420N-7 |
|---|---|
| Max. sewing speed | 5,000sti/min * (Max. 4,000rpm with the stitch length set to 4mm or more) |
| Feed system | Needle-feed |
| Max. stitch length | 5mm (normal feed), 3mm (reverse feed) |
| Needle bar stroke | 30.7mm |
| Lift of the presser foot | By hand: 5.5mm, By knee: 10mm |
| Needle (at the time of delivery) | DB×1 (#14) #9~#18, For JE: 134 (Nm90) |
| Hook | Automatic-lubricating full-rotary hook |
| Max. thickness of the material to be cut | 4mm |
| Lubrication | Automatic |
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
| Automatic reverse feed function | Provided as standard |
| Power requirement | Single-phase 100~120V, 200~240V, 3-phase 200~240V |
| Power consumption | 650VA |
| Total weight | 84kg |
*“sti/min”stands for“ Stitches per Minute”
More Information
| Part No | JUKIDMN5420N7 |
|---|---|
| Weight (KG) | 48.000000 |
| Manufacturer | Juki |
