Description / JUKI MO6814AS-BE6-34H-G44DD10N-BB0 4 THREAD D/D OVERLOCK 6800 SERIES

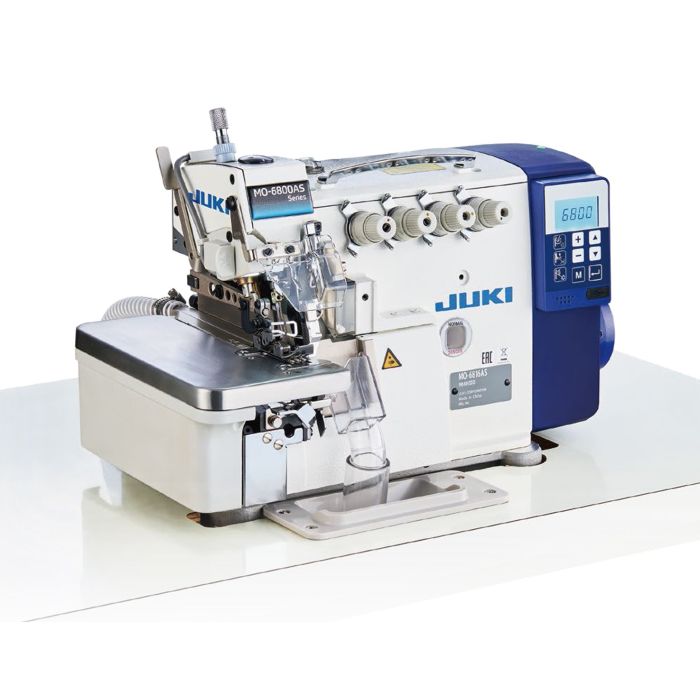

Juki MO-6814AS-BE6-34H-G44DD10N-BB0
- Direct-drive, High-speed, 4-Thread Overlock / Safety Stitch Machine.
Experience precision and efficiency with the Juki MO-6814AS. This direct-drive overlock and safety stitch machine combines high-speed performance with seamless operation. The integrated control box and operation panel simplify setup and adjustments, while the direct-drive system ensures smooth, low-vibration sewing. Capable of reaching up to 7,000 stitches per minute, it’s engineered for demanding production environments that require speed, reliability, and consistent stitch quality.

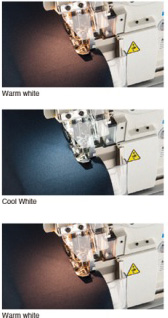

Operator Fatigue Reduction – LED Lighting (Standard on All Series)
All models are equipped as standard with an advanced LED lighting system designed to reduce operator fatigue. The improved tone adjustment function offers two additional color options—Cool White and Warm White—to suit different working environments and materials.
The LED brightness is adjustable across five illumination levels, allowing operators to optimize lighting conditions. By providing clear, balanced lighting over extended periods, this system helps minimize eye strain and improve overall comfort during long sewing operations.
Integrated Operation Panel & Control Box
The operation panel and control box are fully integrated into the machine head for a compact, streamlined setup and easier installation. An energy-saving, high-efficiency servomotor is built in using a direct-drive system. This allows the machine to start and stop quickly with enhanced accuracy, delivering improved responsiveness and precise sewing performance.

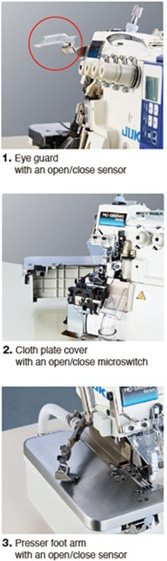

Cover Sensor Unit & Cover Microswitch Unit
The machine is equipped with a cover sensor unit and cover microswitch unit that monitor the closure of protective covers (positions 1, 2, and 3). During operation, these covers must be securely closed, ensuring the machine will not start unexpectedly. This safety feature enhances operator protection by preventing accidental start-up while maintenance or adjustments are being carried out.
Technical Specifications
| Model | Juki MO-6814AS-BE6-34H-G44DD10N-BB0 |
|---|---|
| Stitch type | Safety stitching |
| Stitch style in the U.S.A. | 514 |
| Dry type | - |
| Max. sewing speed | 7,000sti/min (excluding some subclass model) |
| Stitch length | 0.6～3.8(4.5)mm |
| Needle gauge (mm) | 2.0 |
| Overedging width (mm) | 3.0, 4.0 |
| Bottom differential feed ratio | Gathering 1:2 (Max. 1:4), Stretching 1: 0.7 (Max. 1:0.6) |
| Needle bar stroke | 24.5mm (60H: 27mm) |
| Inclination angle of the needle | 20° |
| Needle mechanism | Lower bushing method |
| Needle | DC×27 (refer to subclass machine list) / DC×1 (available only on some models) |
| Max. lift of the presser foot | 7mm (excluding some subclass model) |
| Max. presser foot pressure | 63.7N (6.5kgf) |
| Stitch adjusting method | By push-button |
| Differential-feed adjusting method | By lever (with micro-adjustment) |
| Weight of the machine head | 27kg |
| Lubrication | Automatic (The needle bar mechanism and upper looper mechanism do not require lubrication.) |
| Lubricating oil | JUKI Machine Oil 18 (equivalent to ISO VG18) |
| Needle cooler | Provided as standard |
| Needle thread heat remover | Provided as standard |
| Micro-lifter | Option |
